VARIABLE FREQUENCY POWER SUPPLY
Type PG52

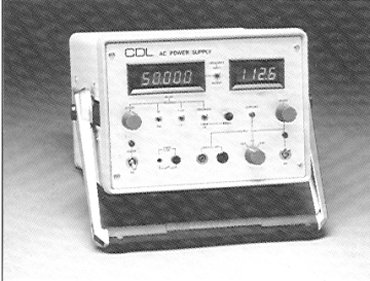

The Convex Design PG52 is a variable frequency sinusoidal AC power supply. The frequency is continuously variable from 47 to 51Hz. A switch is provided to increase the output frequency by approximately 3Hz on the 50Hz range and a 100Hz output is also provided. The output voltage is continuously variable in three switched ranges, nominally 63.5V, 110V and 240Vrms. The 4mm output sockets have shrouded contacts for use with shrouded safety plugs. The rated output of 50VA is obtained at the nominal voltage in each range.

The output is overload protected and indication is provided to show the overload condition. Removal of the overload automatically resets the output to its normal operating condition.

The unit includes a 3½ digit LED voltmeter to indicate the output voltage and a 5 digit LED meter indicating frequency with a resolution of 0.001Hz at 50Hz and 0.01Hz at 100Hz. The frequency meter can also be switched to display the incoming mains supply frequency.

A timing facility is included, utilising the frequency meter, having a range of 0 to 99.999 seconds with a resolution of 1mS. The timer measures the time between the output frequency being reduced by 3Hz and contact closure of the unit under test.

Output voltage and frequency are continuously variable and are adjusted by means of 10-turn potentiometers.

The unit is housed in a two-tone grey metal case with adjustable carrying handle and is supplied complete with manual and test leads. A padded carrying case is available, if required.


SPECIFICATION

INPUTS

Power Supply:              110V or 220/240V 50Hz.

Timer Input:                  Two 4mm sockets - input must be from
                                    volt-free contacts.

OUTPUT

Voltage:                       Selectable at 63.5Vrms, 110Vrms & 240Vrms.

Voltage Range:             0-70Vrms, 0-120Vrms, 0-260Vrms.

Power:                          50VA (rated output at 63.5V, 110V & 240V).

Connectors:                  Shrouded 4mm sockets.

Frequency Range:        47-51Hz and 100Hz.

Sine Wave Distortion:    Less than 1% total harmonic distortion at rated
                                   output.  (Typically 0.4% t.h.d.)

Insulation:                    2KV rms to earth.

DIGITAL FREQUENCY METER

Display:                       5 digit LED 14mm numeral height.

Frequency   Mode:       Three decimal places on 50Hz range and two
                                   decimal places on 100Hz range.
                                   Accuracy ±0.005Hz at 50Hz, ±0.05Hz at 100Hz.
                                   Gate time 1 second.

Timer Mode:                 0-99.999 Secs
                                   Accuracy ±2mS.

DIGITAL VOLTMETER

Display:                       3½ digit LED 14mm numeral height.

Accuracy:                    63.5V Range ±0.5V
                                   110V  Range ±1V
                                   240V  Range ±1V

ENCLOSURE                A two-tone grey metal case with adjustable
                                   carrying handle.  Supplied complete with
                                   manual and test leads.

Dimensions:                 W: 306mm  H: 200mm   D: 445mm inc.handle.

Weight:                        9kg.
