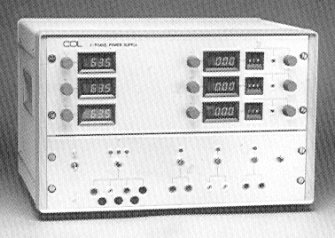

PRECISION 3-PHASE ELECTRONIC POWER SUPPLY
TYPE PG300







The Convex Design PG300 is a precision 3-phase electronic power supply providing a full 3-phase, 4-wire voltage output facility with three isolated current outputs and is powered from either a 110V or 240V single phase supply.

The level of each voltage or current output may be adjusted from zero to full scale using a multiturn potentiometer and the magnitude of each output is displayed on a digital panel meter (one per output).

The phase relation between the three voltage outputs is fixed at 120° and the phase of each current output may be adjusted over the range -199° to +199° referenced to the corresponding voltage channel. In addition a ±1.5° continuously variable phase shift control is provided for each current output.

Variable phase shift on the yellow and blue voltage phases can be supplied as an option.

The voltage and current outputs are low distortion (better than 0.2% total harmonic distortion) with voltage outputs providing up to 25VA per channel and the current channels providing up to 15VA. The current outputs are of constant current format and are protected against open-circuit operation.

The output frequency of 50Hz is crystal-controlled. Variable frequency is also available as an option.

The unit is housed in a two-tone grey metal case with a recessed handle in each side panel and is supplied complete with manual and test leads.


SPECIFICATION
INPUT
     Power Supply:            110V/240V 50Hz switchable.
OUTPUTS
     Voltage Channels:       3 channels connected phase-neutral.
                                       120° ±0.1° phase shift between channels.
                                       0-120Vrms, 25VA per channel.
                                       Regulation less than 1% at 25VA.
     Current Channels:        3 isolated outputs.
                                       0-1A rms or 0-5A rms, 15VA per channel.
                                       Constant current output.
     Phase Shift:                 -199° to +199° in 1° steps between any channel
                                       and the corresponding voltage channel. Continuously
                                       variable trimmers give ±1.5° adjustment per channel.
     Output Frequency:       50Hz crystal-controlled.
     Sine Wave Distortion:   Less than 0.2% total harmonic distortion on voltage or
                                       current ranges at rated output.
DIGITAL VOLTMETERS
     Display                        3½ digit LED 14mm numeral height, one decimal place.
     Accuracy                     ±0.5V.
DIGITAL AMMETERS
     Display:                       3½ digit LED 14mm numeral height.
     Accuracy:                   ±0.005A on 1A range, ±0.05A on 5A range.
ENCLOSURE                    A two-tone grey metal case with side-panel recessed
                                       handles.  Supplied complete with manual and leads.
     Dimensions:                W: 520mm  H: 345mm  D: 445mm.
     Weight:                       28kg.
OPTIONS
Variable frequency
Digital timer
