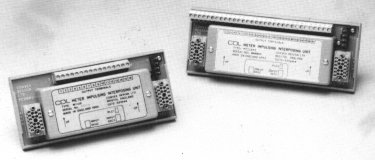

METER IMPULSING INTERPOSING UNIT
Types MIIU8 & MIIU392



Meter Impulsing Interposing Units (MIIU) provide a barrier between the impulsing outputs of energy meters and data processing equipment located externally to the metering suite.

The MIIU contains eight interposing relays, each relay providing either one normally-open output contact (MIIU8) or two normally-open output contacts (MIIU392). Mercury-wetted relays are used to give a life expectancy in excess of 1 x 109 operations.

The eight inputs to the MIIU, from volt-free contacts of energy meters, are made by two 20-way '516' connectors.The volt free output contacts are made via 16-way or 32 way terminal blocks.

Input circuits and each output circuit are isolated from earth and each other to a level of 2KV rms at 50Hz.

The MIIU case incorporates a mounting base allowing the unit to be mounted on a HORIZONTAL 'G' or 'top hat' DIN rail.

See also the MIIU42 which contains four interposing relays, each relay providing 4 normally-open output contacts.

MIIU8 & MIIU392 comply with Specification NGC-EM39(1991).


SPECIFICATION

RELAYS
MIIU8                                    8 off SPNO (form A) mercury-wetted relays.
MIIU392                                8 off DPNO (form A) mercury-wetted relays.
Energisation voltages:           43 to 60Vdc (nominal  48V, positive earthed).
                                           110Vdc - please contact sales for details.
Burden at 50% duty cycle:    330mW maximum per relay at 60Vdc.
Output Load:                        Source impedance of 1.25K ohms in series with
                                            10 micro Henries at 48Vdc.
Life:                                     At least 1 x 109 operations when switching above load.
Note:                                   A 27R current limiting resistor is connected in series
                                           with the relay output contacts.
Wetting current for the
energising relay:                   6mA minimum at 43Vdc.
INSULATION                         2KV rms between all input circuits, output circuits and earth.
                                           500V rms across normally open relay contacts.
ENVIRONMENT                    EES1980 Class C.
ELECTRICAL
INTERFERENCE                   EES1980 Class Z.
INPUT CONNECTORS           2 off PCB mounted 20-way receptacle (16 pins used).
OUTPUT  TERMINALS           16 off screw terminals accepting up to 2.5mm˛ cable.
SUPPLY CONNECTOR          4 pin PCB mounted plug (pins 1 & 2 used).
PHYSICAL  DETAILS
Fixing:                                  Feet are provided for mounting on HORIZONTAL  'G'
                                            or 'top hat' DIN rails.
MIIU8
Dimensions:                         W : 170mm  H : 78mm  D : 48mm (inc. feet)
Weight:                                300gms
MIIU392
Dimensions:                         W : 192mm  H : 78mm  D : 48mm (inc. feet)
Weight:                                350gms.

Please contact CDL should your supply, load requirements, or mounting configuration differ to the above. Different configurations are available to order.
